SPECTRALUX HIMAWARI NATURAL SOLAR LIGHTING SYSTEM

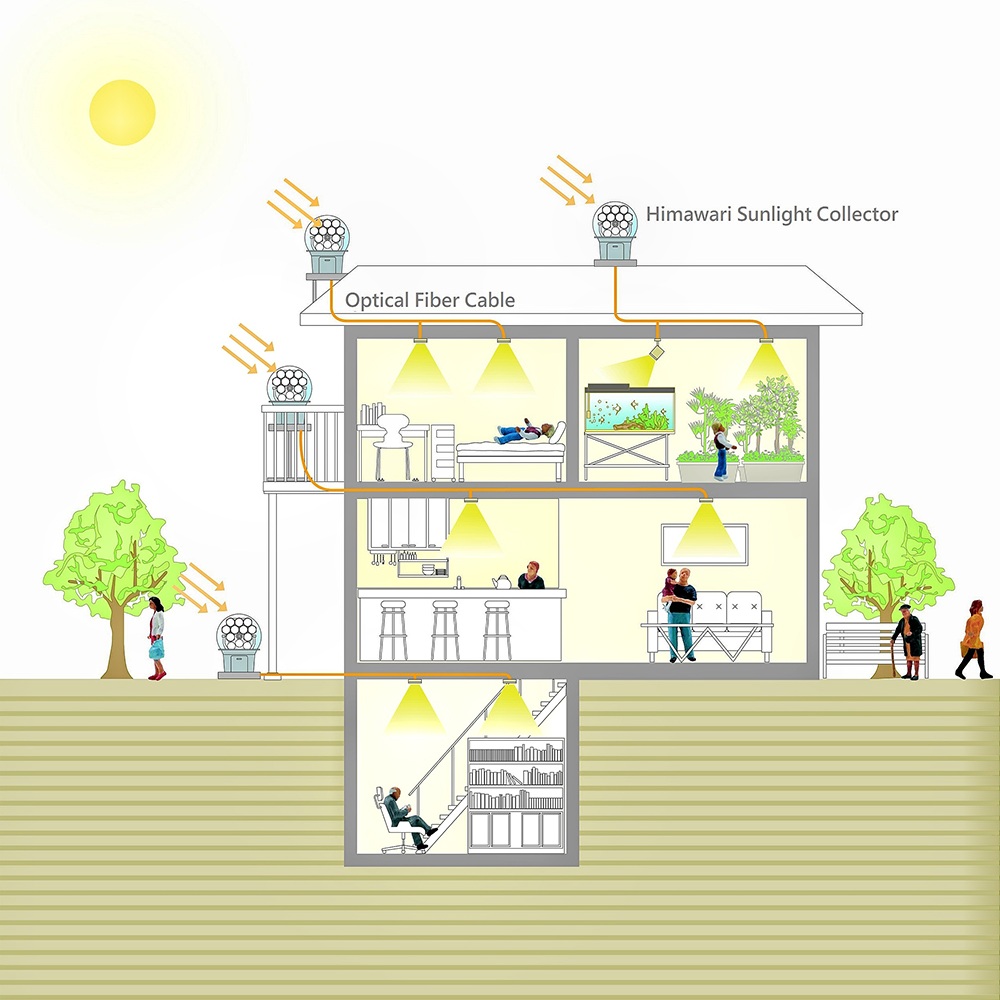

How Spectralux Himawari Solar Lighting brings sunlight into your room

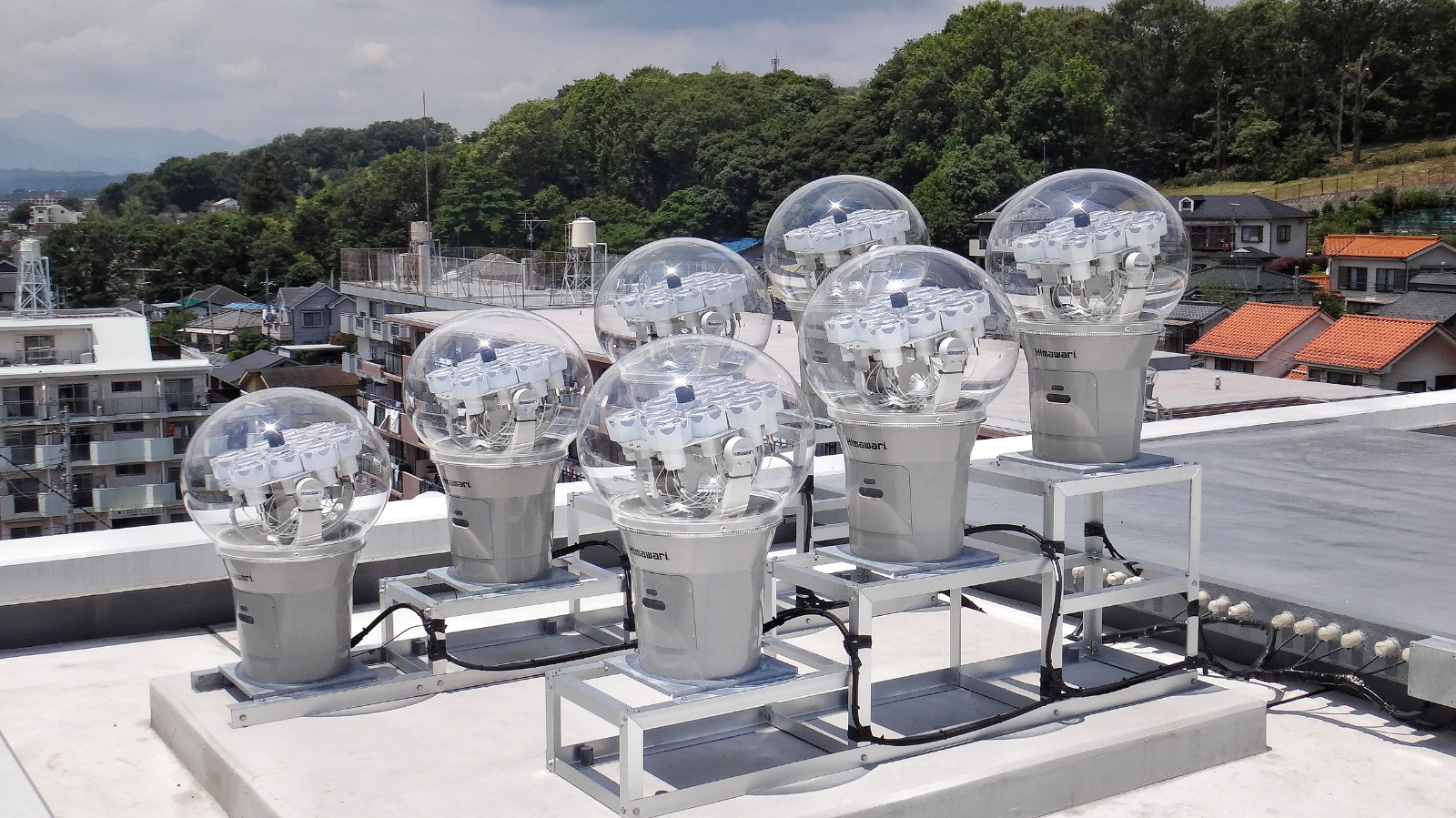

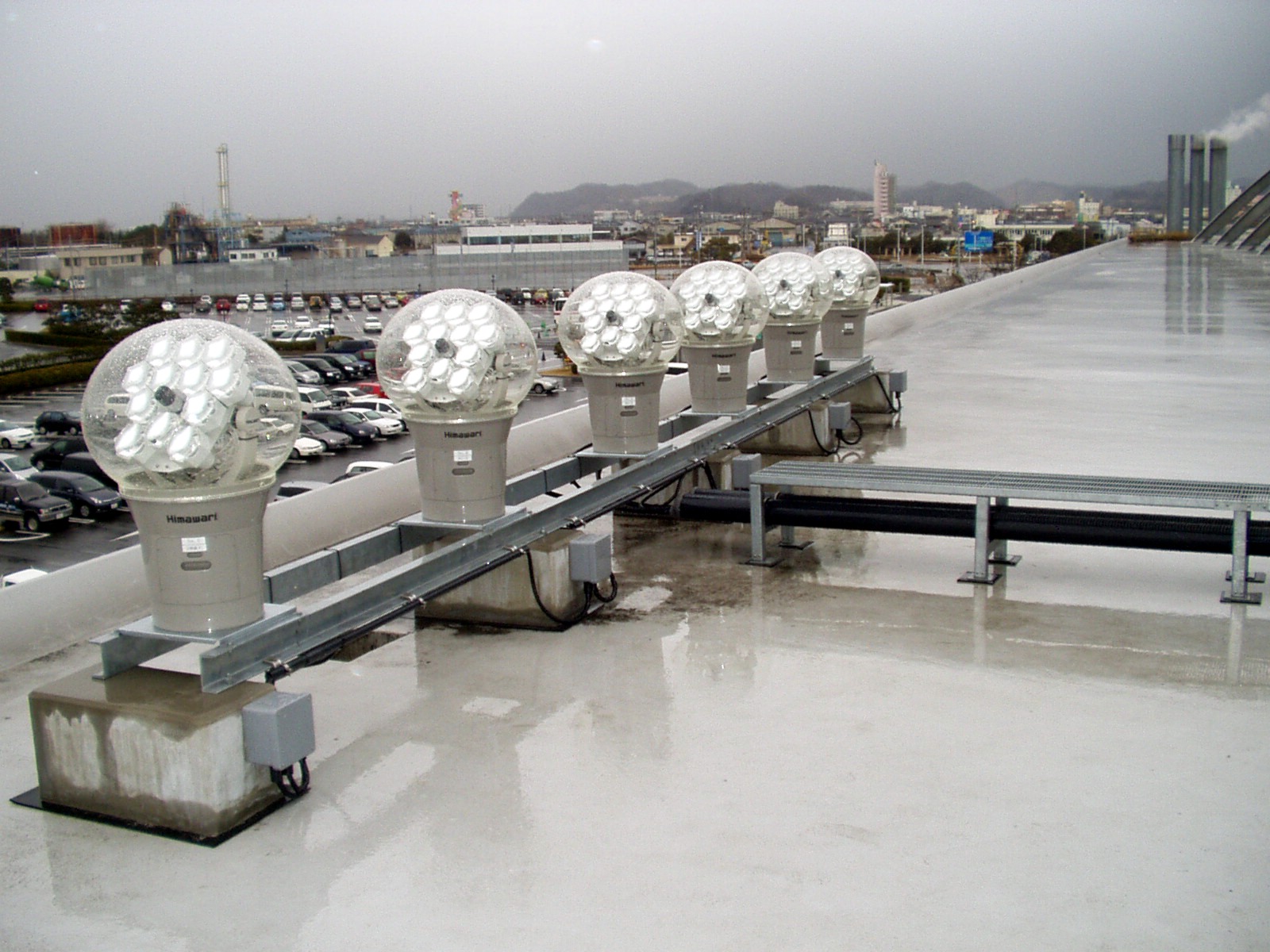

Spectralux Himawari Natural Solar Lighting system consists of a sunlight collector and optical fiber devices. Its outdoor sunlight collector collects sunlight passes through quartz glass optical fibers which transmit visual ray-dominated sunlight to anywhere you want and get the day lighting.

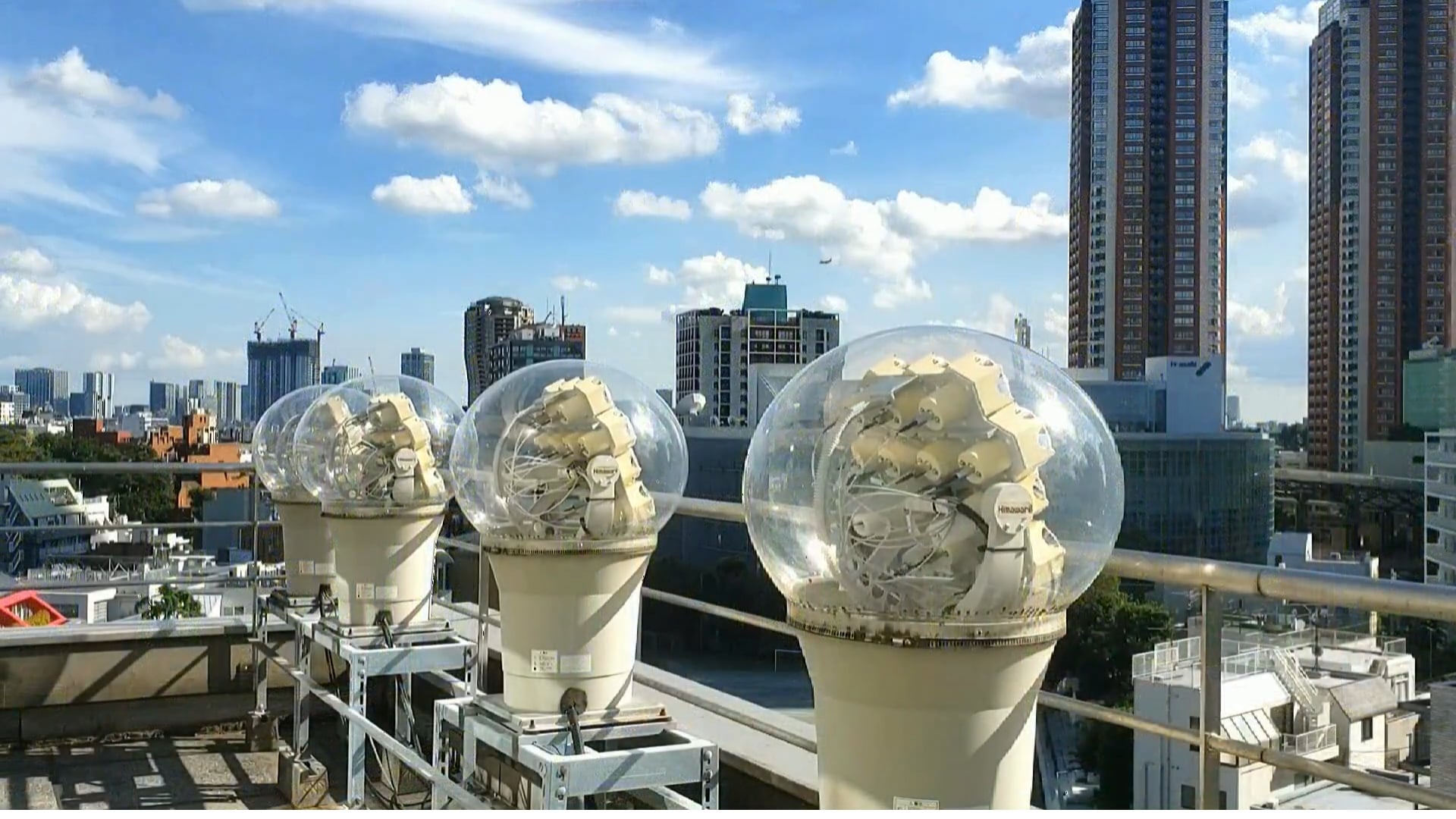

Spectralux Himawari Natural Solar Lighting System is equipped with an automatic tracking system to accurately detect sunbeams and continuously changes its position from sunrise to sunset. It provides a stable indoor without suffering constraints imposed by room location, window orientation, and solar altitude.

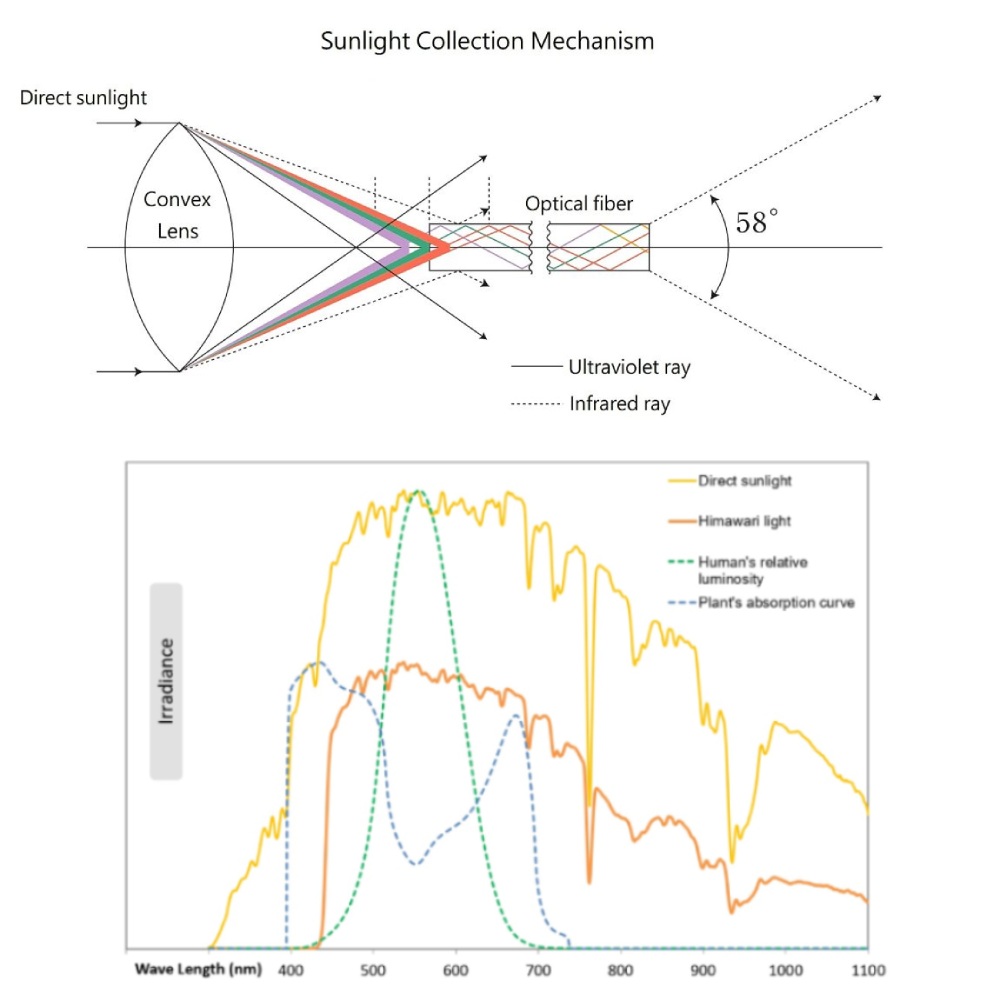

Mechanism of Spectralux Himawari solar lighting system

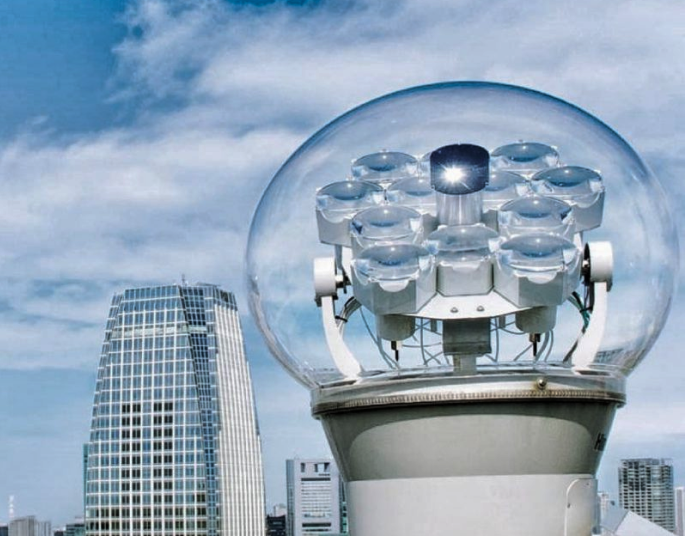

Himawari Solar Lighting using acrylic dome covering the lenses and chromatic aberration through single lens focusing, the sun’s UV can be eliminated. Therefore, the light consists predominantly of visible rays.

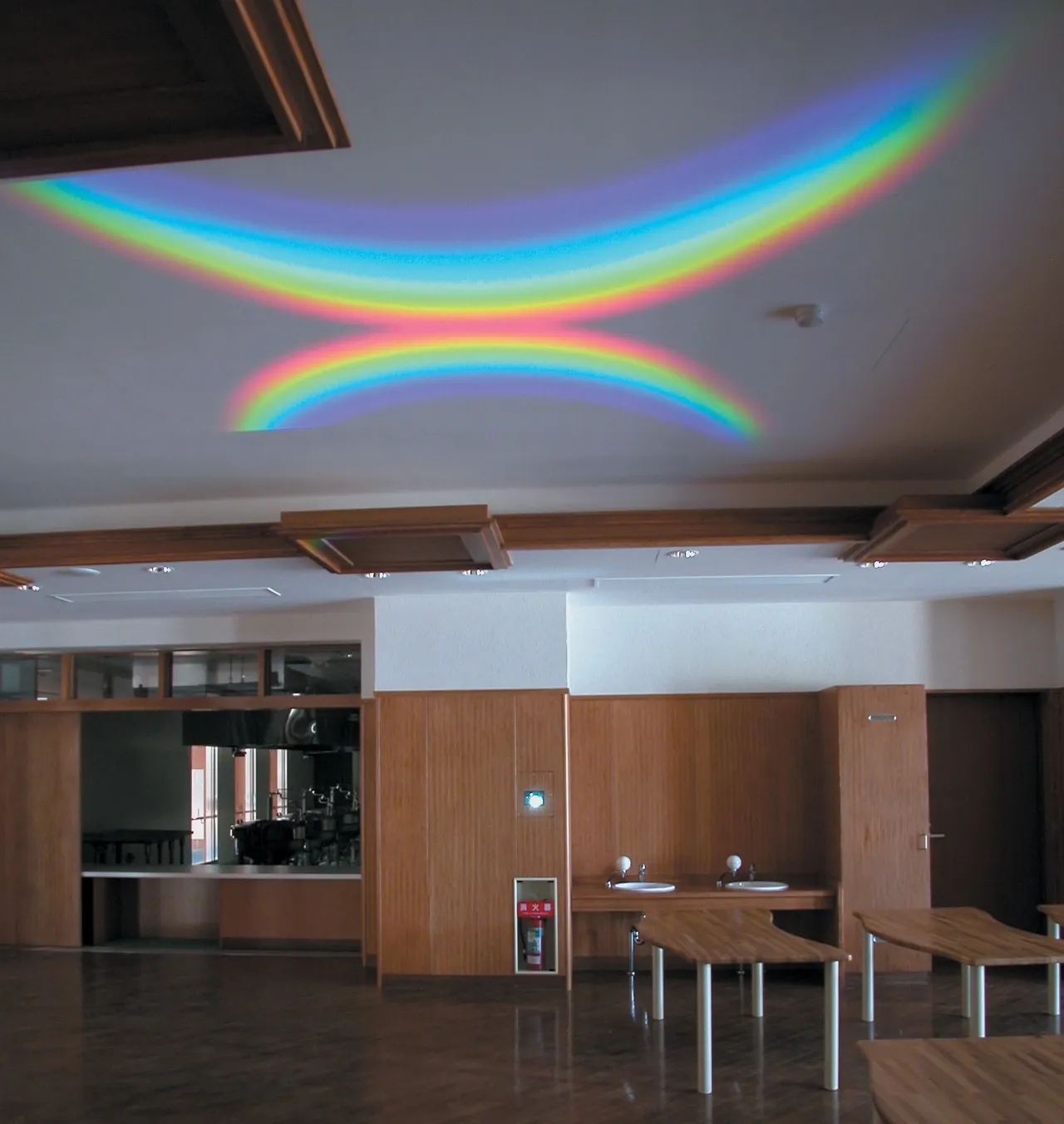

When sunlight passes through a convex lens, an effect called chromatic aberration occurs, causing different wavelengths of sunlight-- ultraviolet, visible, and infrared--to focus on different distances from the lens. The visible rays are collected and transmitted from the input-end of an optical fiber positioned at their focal point. Thus, the ultraviolet and infrared rays can be eliminated and can have natural day lighting.
THE PURE SUNLIGHT

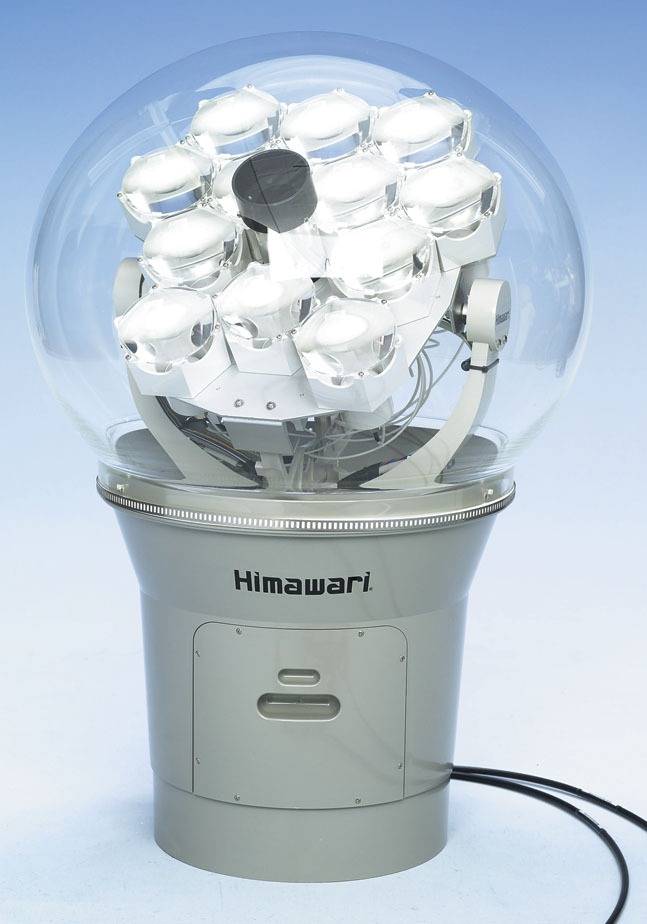

12-Len sunlight collector XD-100S/12AS

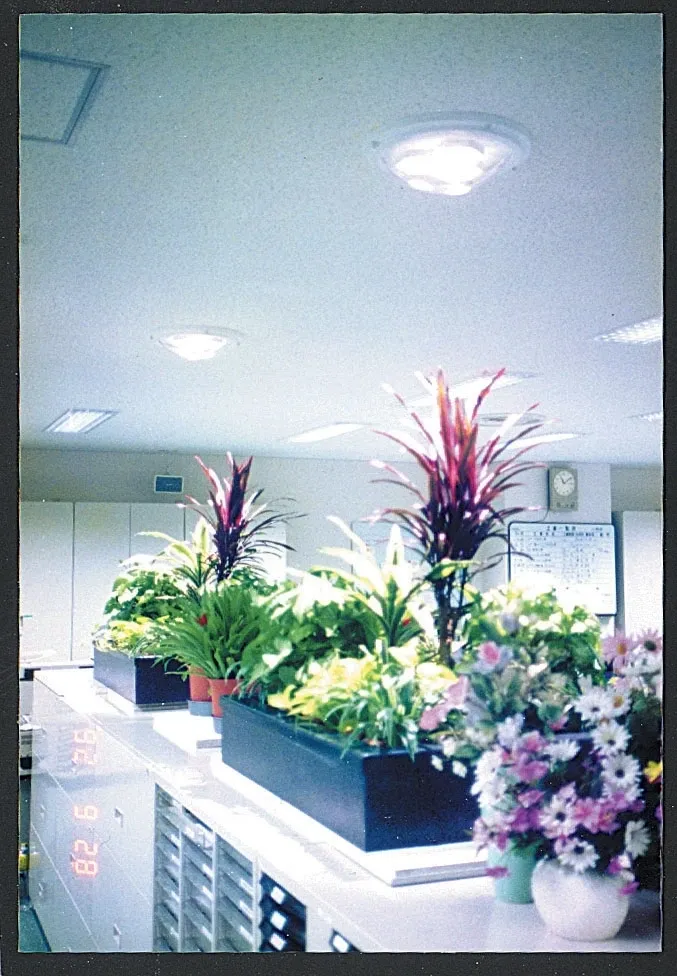

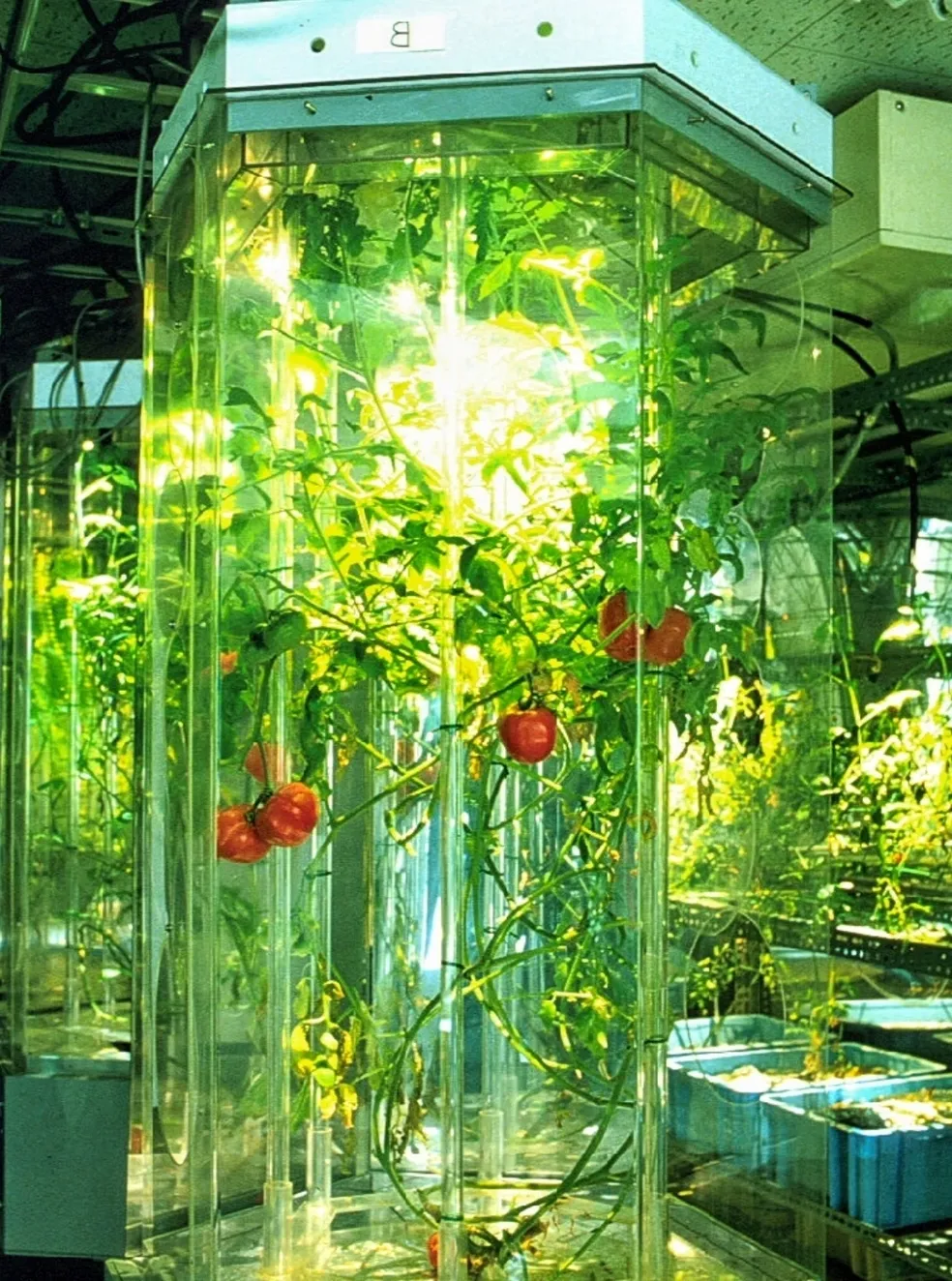

Compared to other LED lights, Spectralux Himawari Natural Solar Lighting provides a spectrum like natural day lighting, and screens out ultraviolet rays to help you to feel happy and to keep your health, remain energized throughout a day. Therefore, It provides a better indoor environment for people’s health, indoor farming, and aquarium. Not just for your health, the UV-free natural light also protects furniture and carpets from color fading.
12-Len sunlight collector XD-100S/12AS
12-Len sunlight collector XD-100S/12AS
- Himawari Solar Lighting & Day Lighting System Equipped with two optical fiber cables.
- Perfectly suited to use in house solution and it can be adapted to a wide range of establishments not less than mid-scale. •Rated at AC85V~264V •14Kg

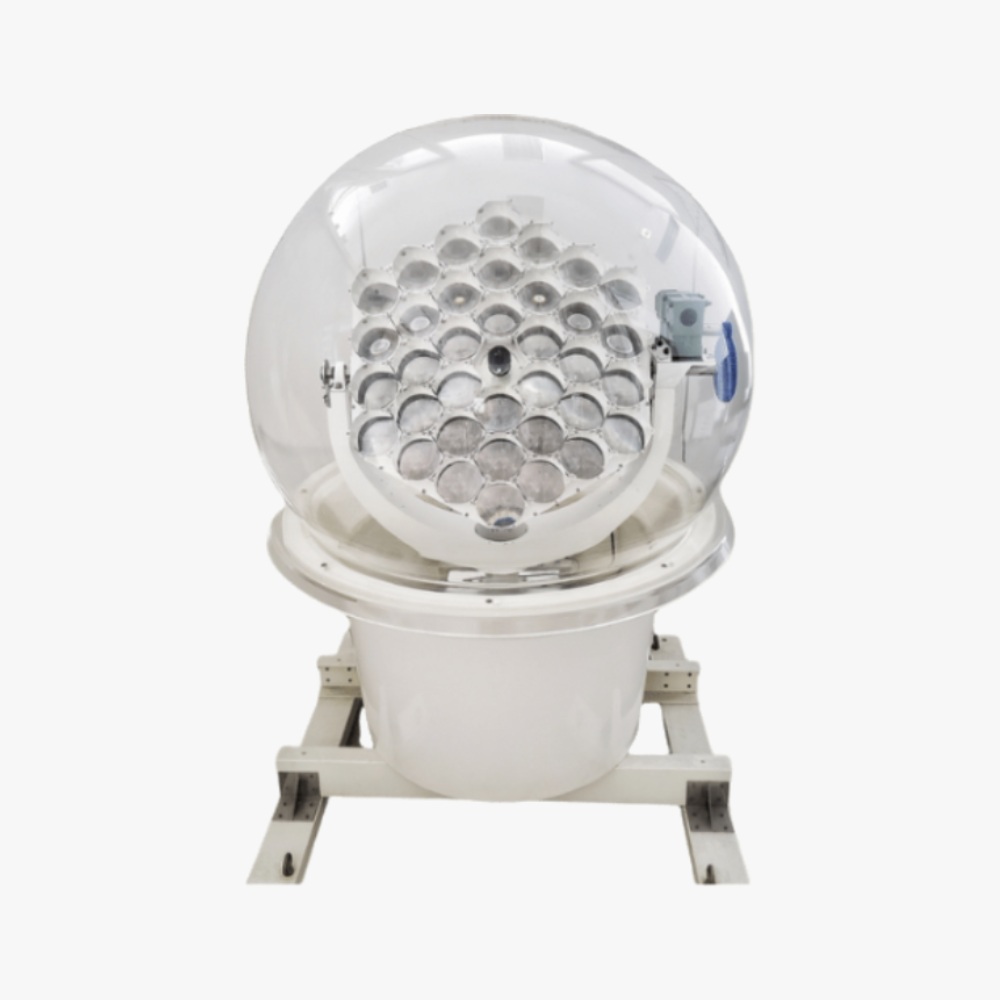

36-Len sunlight collector XD-100S/36AS
- Capable of transmitting light to up to 6 terminals
- Suitable for use in mid-scale
establishments
- Rated at AC85V~274V
- 88 Kg

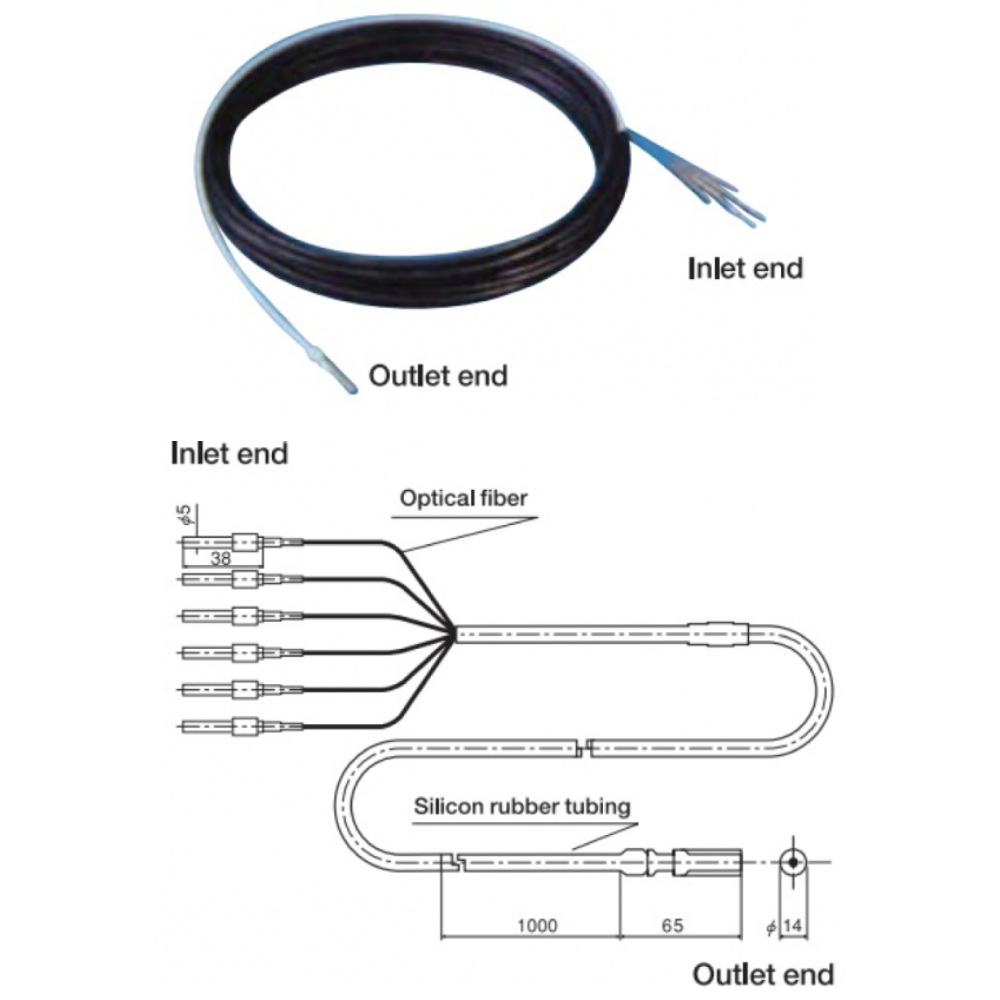

Optical fiber cable
- Single cable consists of a bundle of six optical fibers with a core size of 1mmΦ
- The single bundle cable can transmit sunlight collected by six lenses.

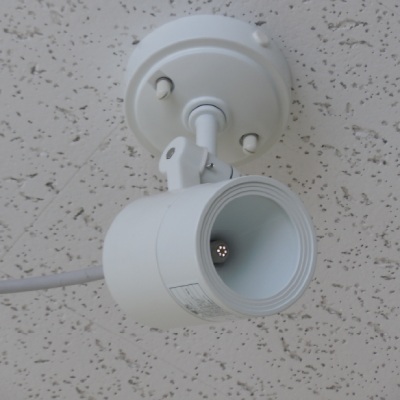

SPOT LIGHT
DOWNLIGHT NA
DOWNLIGHT NA
- Dimensions : W77mmφ × H185mm
- Color : white
- Diffusion type is available.

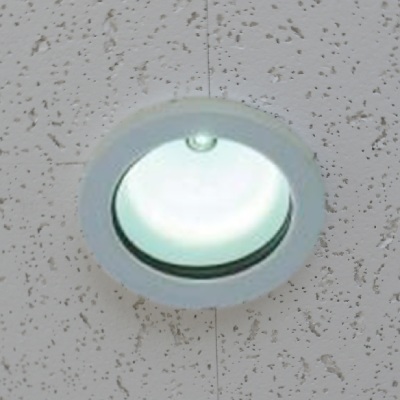

DOWNLIGHT NA
DOWNLIGHT NA
DOWNLIGHT NA
- Dimensions : W130mmφ × H90mm
- Minimum ceiling clearance : 300mm
- Color : white
- Diffusion type is available.
- changeable type(Illuminated diameter)is available.

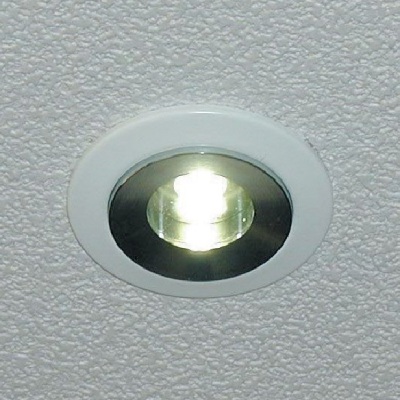

DOWNLIGHT ND
DOWNLIGHT NA
DOWNLIGHT ND
- Dimensions : W85mmφ × H73mm
- Minimum ceiling clearance : 250mm
- Color : white(frame)× chrome(reflector)
- Diffusion type is available.
HEALTH BENEFITS FOR HUMAN BODY
"Bright, calm, and clean — SPECTRALUX HIMAWARI NATURAL SOLAR LIGHTING delivers daylight to every hos
According to scientific research, the dynamic day light has a positive effect on people’s health. Our rhythm of a day from waking, eating, working, resting, playing, and sleeping. Our behaviors follow the circadian rhythm light. It’s a rule of nature.
The circadian rhythm light and automatically adjusts to the time of a day. If we keep indoors, working all the time, how can our body follow the normal rhythm and keep us healthy?
Spectralux Himawari solar lighting system provides the natural day lighting following the natural sunlight change over time during each day. The circadian rhythm light can help us to control our body’s circadian system.
Boosts Well-being – Natural daylight improves mood, reduces stress, and enhances productivity.
🔹 Supports Healthy Sleep – Mimics sunlight to maintain circadian rhythm, improving sleep quality.
🔹 Reduces Eye Strain & Fatigue – Eliminates glare and flicker from artificial lighting.
🔹 Enhances Indoor Air & Comfort – No heat or UV rays, creating healthier workspaces.
🔹 Promotes Vitamin D Benefits – Brings UV-free daylight indoors, supporting bone health & immunity
